Single-Channel
RN6750V1
1-Channel HD (1M) Decoder with Parallel (DVP) Output- Features
- Single 3.3V Supply Voltage
- Supporting D1 (NTSC/PAL) and 1080p (1M) Video Resolution
- 2x Analog Inputs
- BT.656/601 Interface
- Built-in 1.2V, 1.8V LDO

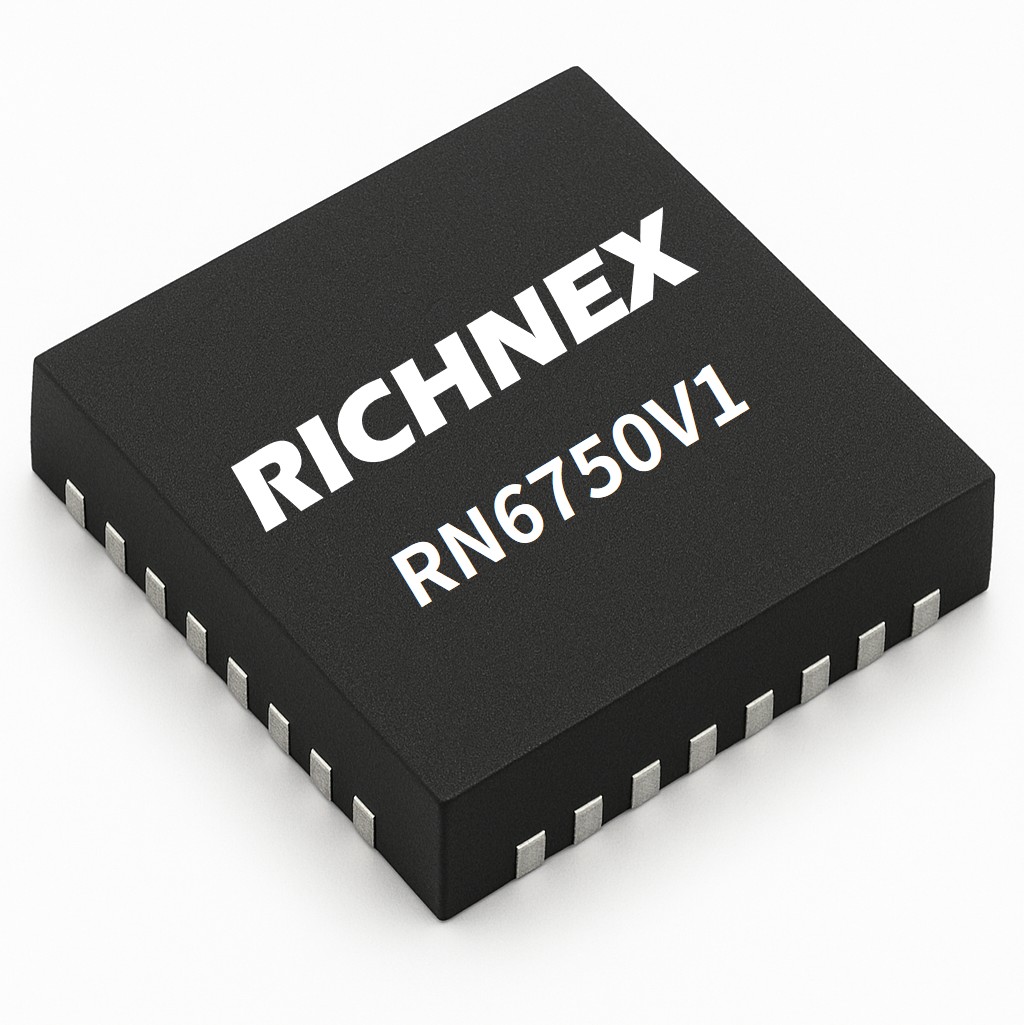

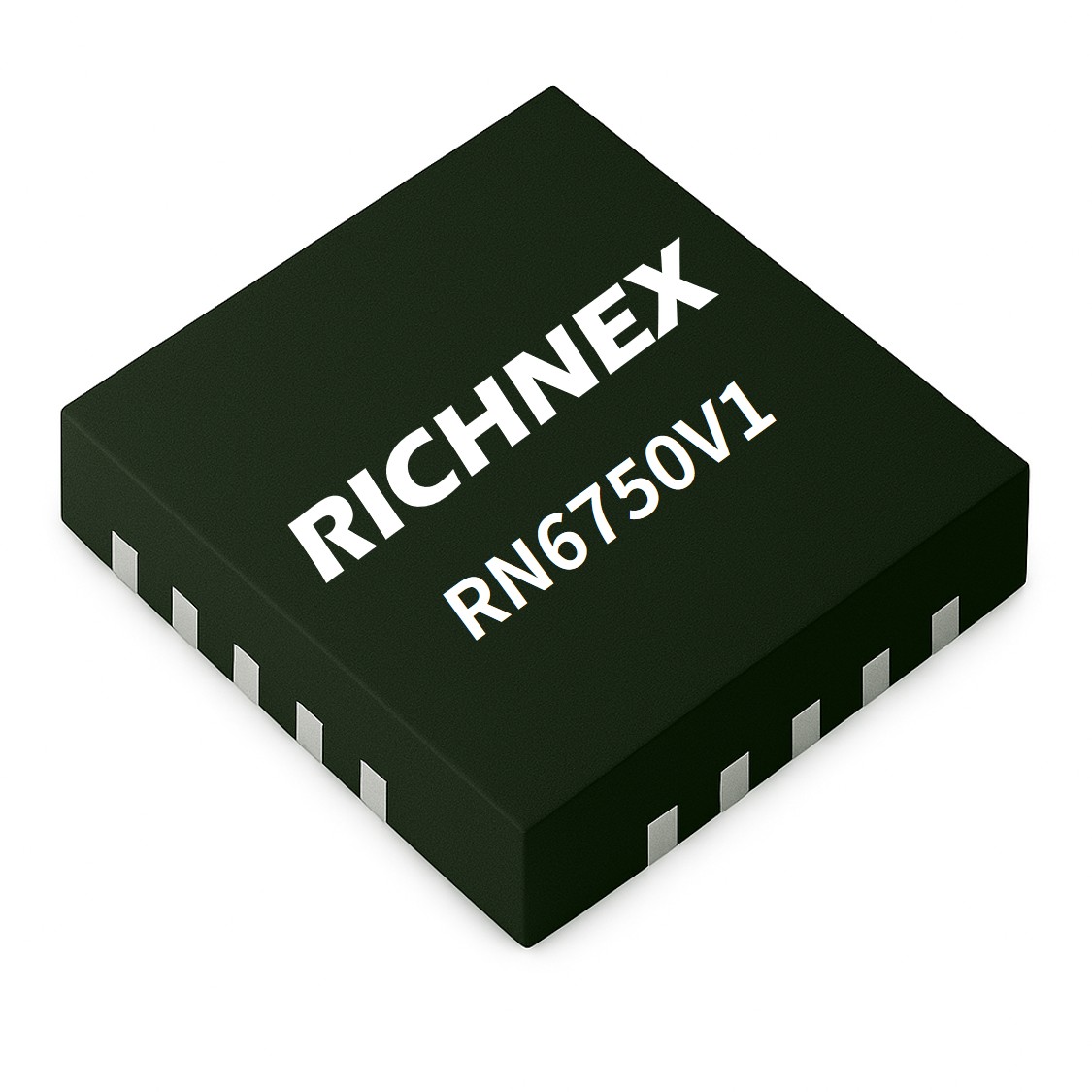

- QFN-32 5mm x 5mm Package
- -40°C to +85°C Operating Temperature Range
- Designed for Industrial and Consumer Applications
Description
The RN6750 is a single supply HD (1M) video decoder, only a 3.3V power is required which minimizes the external components used and no elaborate power-up sequence to follow. This device is the best choice to replace CVBS (D1) decoder such as TVP5150 or similar devices and offers the decoding capability upgrade to HD (1M, 1080p) resolution. This low power, high resolution, small foot print, simple to use decoder serves as a general purpose device for entry level applications. This device can be upgraded for higher resolution decoding needs using decoder chips in the single-channel product family without PCB re-design.Applications
- HD and SD (D1) Video Decoding
- Industrial and Consumer Video Capture System
- TVP5150 Replacement

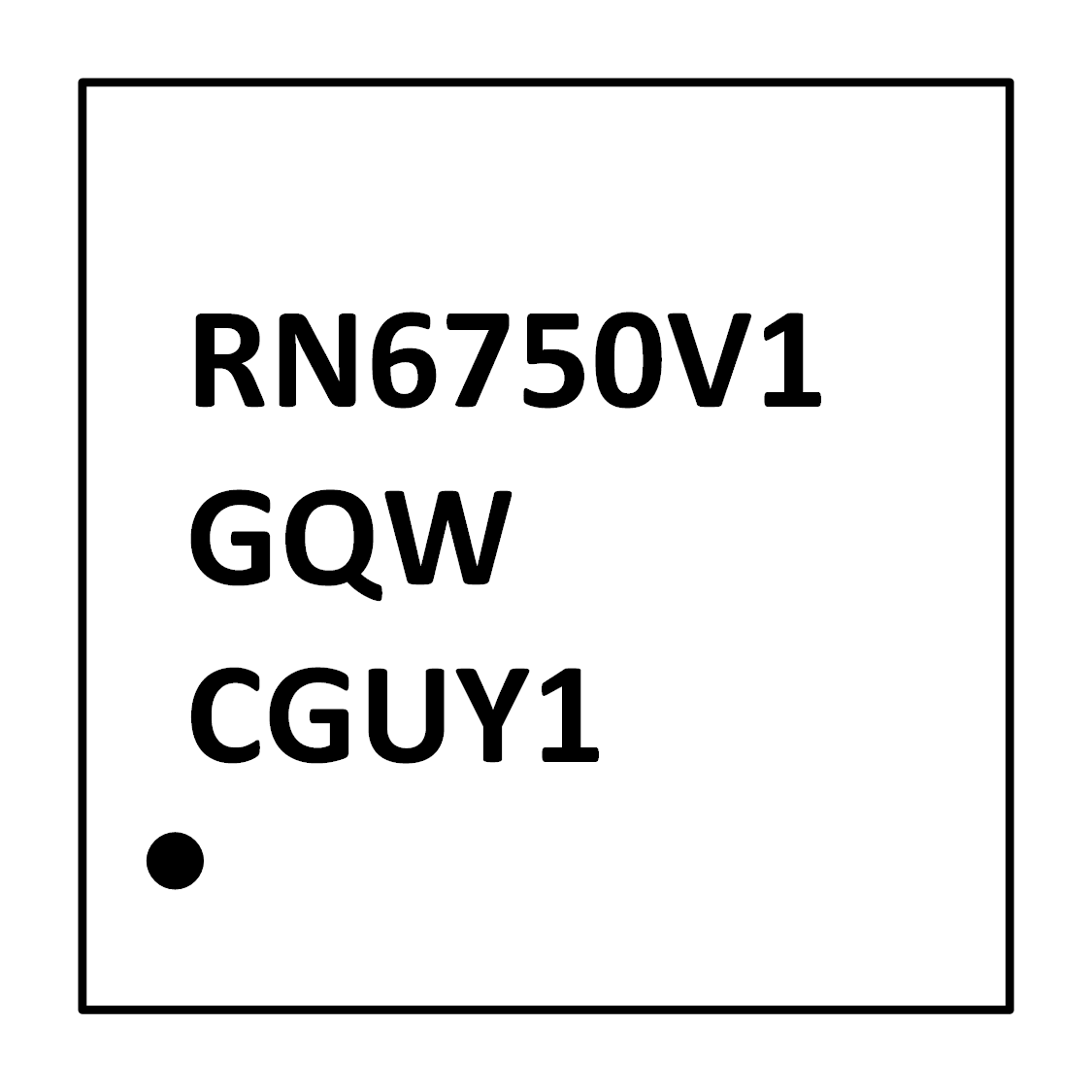

Package Information
| Package | Dimensions | Leads | Package Code |
|---|---|---|---|
| QFN | 5mm x 5mm | 32 | GQW |
Key Parameters
| Analog Input | Decoder Channel | Output Interface | Supply | Resolution | Current | Temp. |
|---|---|---|---|---|---|---|
| 2 | 1 | BT.656 BT.601 |
3.3V | 1080p/D1 | -40°C to +85°C |
