Single-Channel

RN6752V1

1-Channel HD (2M) Decoder with MIPI (1x 4-Lane) Output

Features: Supporting 1080p (2M) Video Resolution; 2x Analog Inputs; MIPI (1x 4-Lane) Interface; Built-in 1.8V LDO; QFN-32 5mm x 5mm Package; -40°C to +85°C Operating Temperature Range; Designed for Industrial and Automotive Applications

Description

The RN6752V1 is a single-channel HD (2M) video decoder with MIPI interface, optimized for automotive applications. Ideal for aftermarket backup camera systems, it combines low pin count, high resolution, and cost-effectiveness with proven quality and reliability—supported by millions of units shipped since launch. Pin-compatible with other Richnex 32-pin decoder products, the RN6752V1 offers both hardware and software upgrade paths, enabling flexible feature enhancements without PCB redesign.

Add Inquiry (0)

Applications

HD (2M) Video Decoding
Industrial and Automotive Video Capture System
Automotive DVR
TVP5150 Replacement

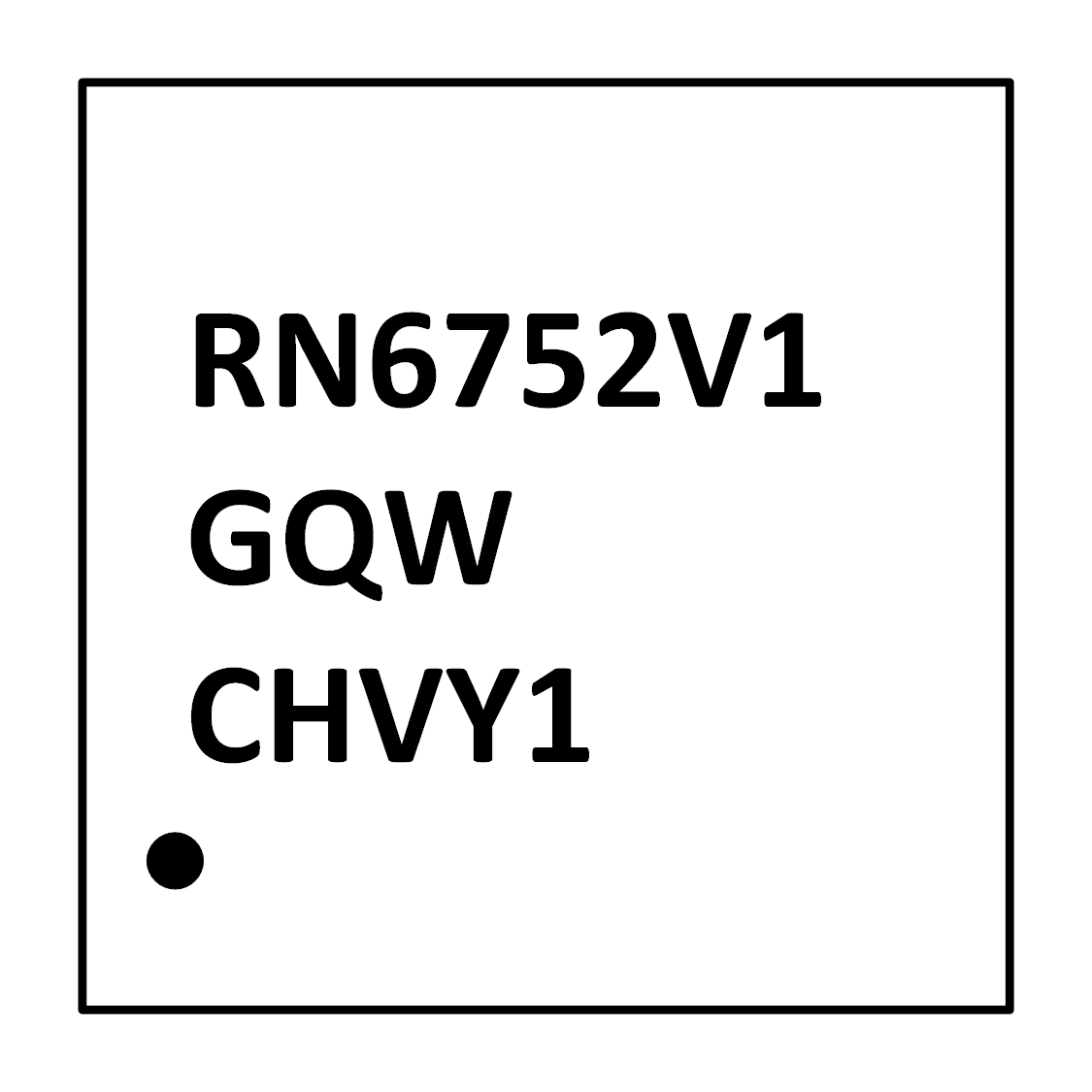

Package Information

Package	Dimensions	Leads	Package Code
QFN	5mm x 5mm	32	GQW

Key Parameters

Analog Input	Decoder Channel	Output Interface	Supply	Resolution	Current	Temp.
2	1	MIPI	1.2V 3.3V	1080p		-40°C to +85°C
