Single-Channel

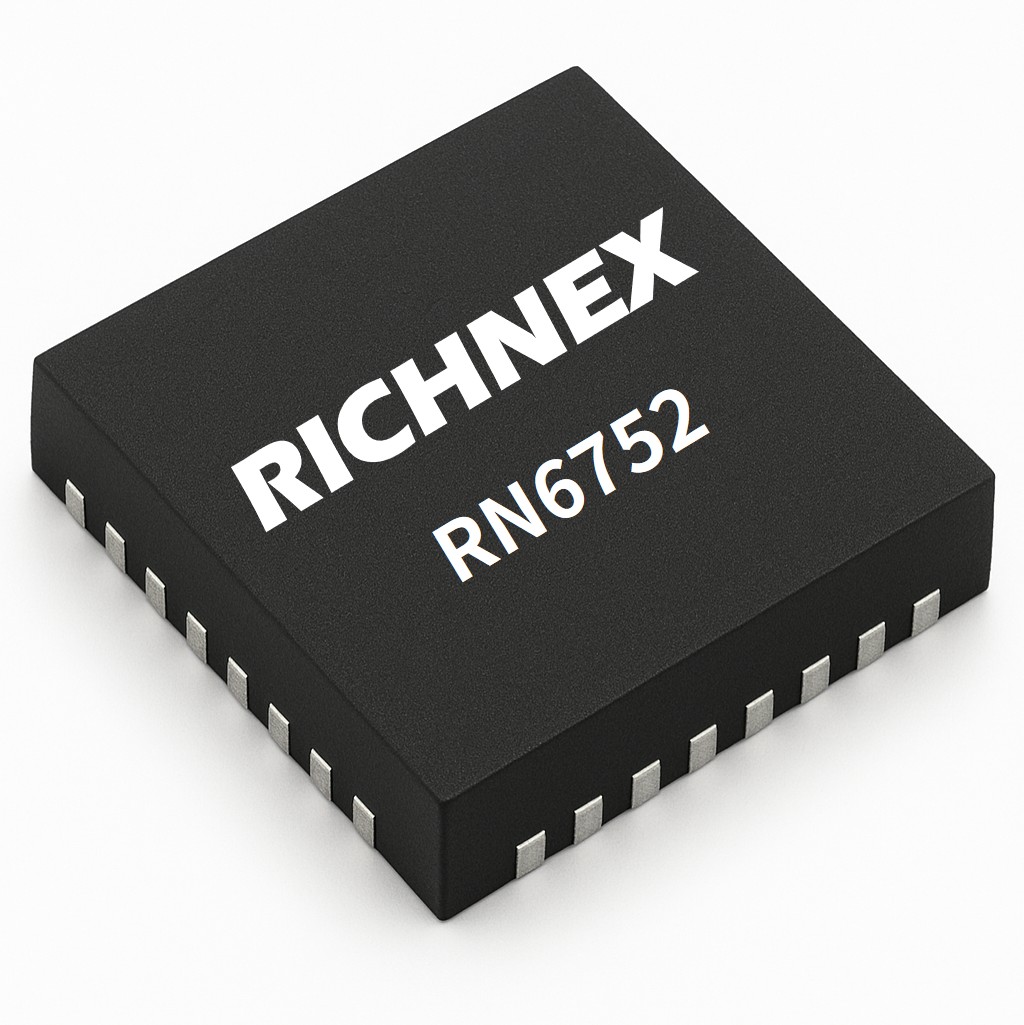

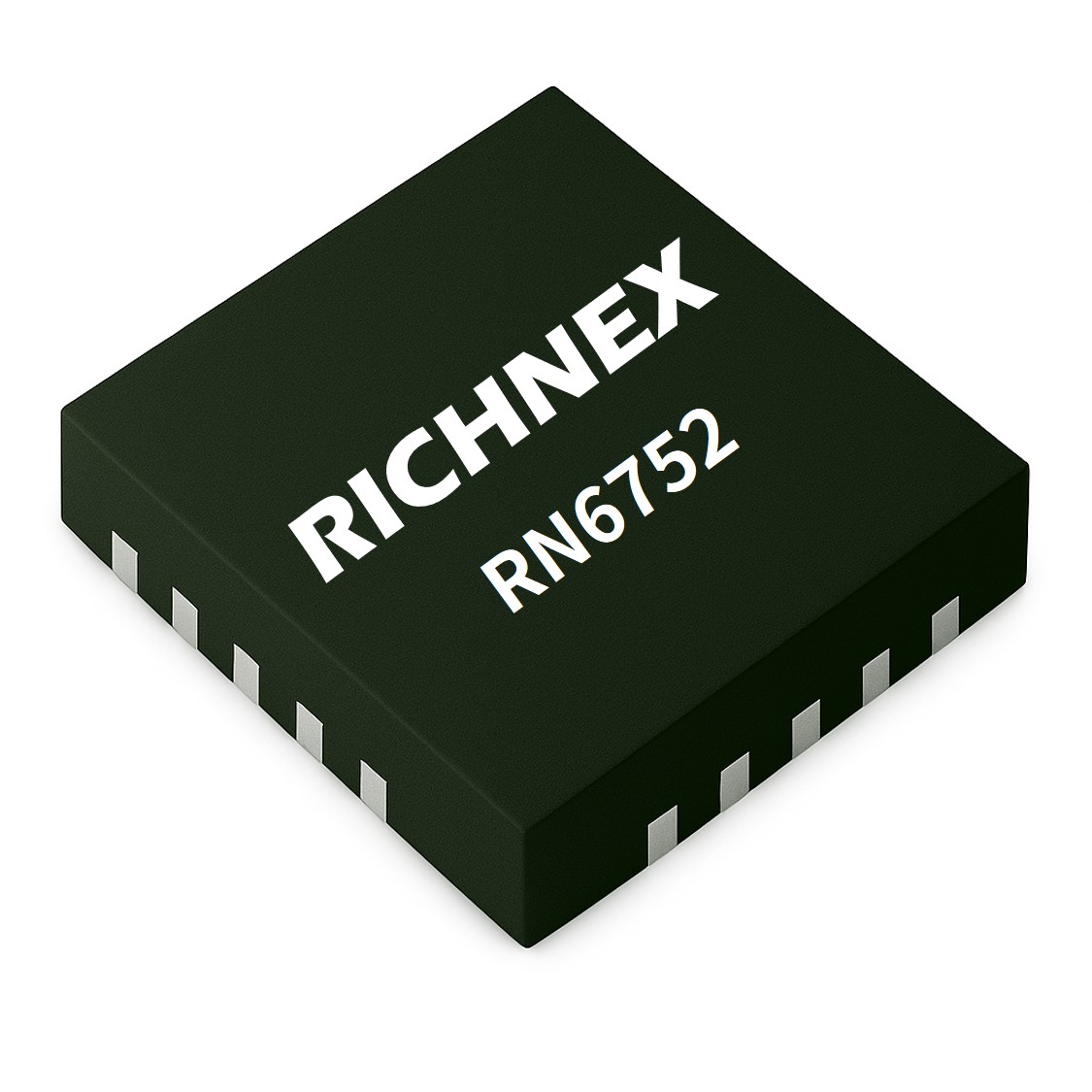

RN6752
1-Channel HD (1M) Decoder with Parallel (DVP) Output- Features
- Supporting D1 (NTSC/PAL) and 720p (1M) Video Resolution
- 2x Analog Inputs
- BT.656/601 Interface
- Built-in 1.8V LDO
- QFN-32 5mm x 5mm Package
- -40°C to +85°C Operating Temperature Range
- Designed for Industrial and Consumer Applications
Description
The RN6752 is a cost-effective, single-channel HD (1M) video decoder designed for consumer applications. Optimized for entry-level aftermarket backup camera systems, it combines low pin count, high resolution, and affordability with proven quality and reliability. Since its introduction, the RN6752 has shipped over one million units, making it a trusted choice for cost-sensitive designs.Applications
- HD and SD (D1) Video Decoding
- Industrial and Consumer Video Capture System
- Automotive Aftermarket DVR TVP5150 Replacement
Package Information
| Package | Dimensions | Leads | Package Code |
|---|---|---|---|
| QFN | 5mm x 5mm | 32 | GQW |
Key Parameters
| Analog Input | Decoder Channel | Output Interface | Supply | Resolution | Current | Temp. |
|---|---|---|---|---|---|---|
| 2 | 1 | BT.656 BT.601 |
1.2V 3.3V |
720p/DI | -40°C to +85°C |
