Single-Channel

RN6752Q1

1-Channel HD (2M) Decoder with MIPI (1x 4-Lane) Output

Features: AEC-Q100 Grade 2 Qualified; Supporting 1080p (2M) Video Resolution; 2x Analog Inputs; MIPI (1x 4-Lane) Interface; Built-in 1.8V LDO; QFN-32 5mm x 5mm Package; -40°C to +85°C Operating Temperature Range; Designed for Automotive Applications

Description

The RN6752Q1 is a single channel HD (2M) video decoder with MIPI interface optimized for automotive applications. It is AEC-Q100 Grade 2 qualified device ideal for automotive OEM and tier 1 customers. With continued ORT and Zero-Defect process, its early life failure rate has significantly improved after shipment of over million pieces.

Add Inquiry (0)

Applications

HD (2M) Video Decoding
Automotive Video Capture System
Automotive Rearview Camera System TVP5150 Replacement

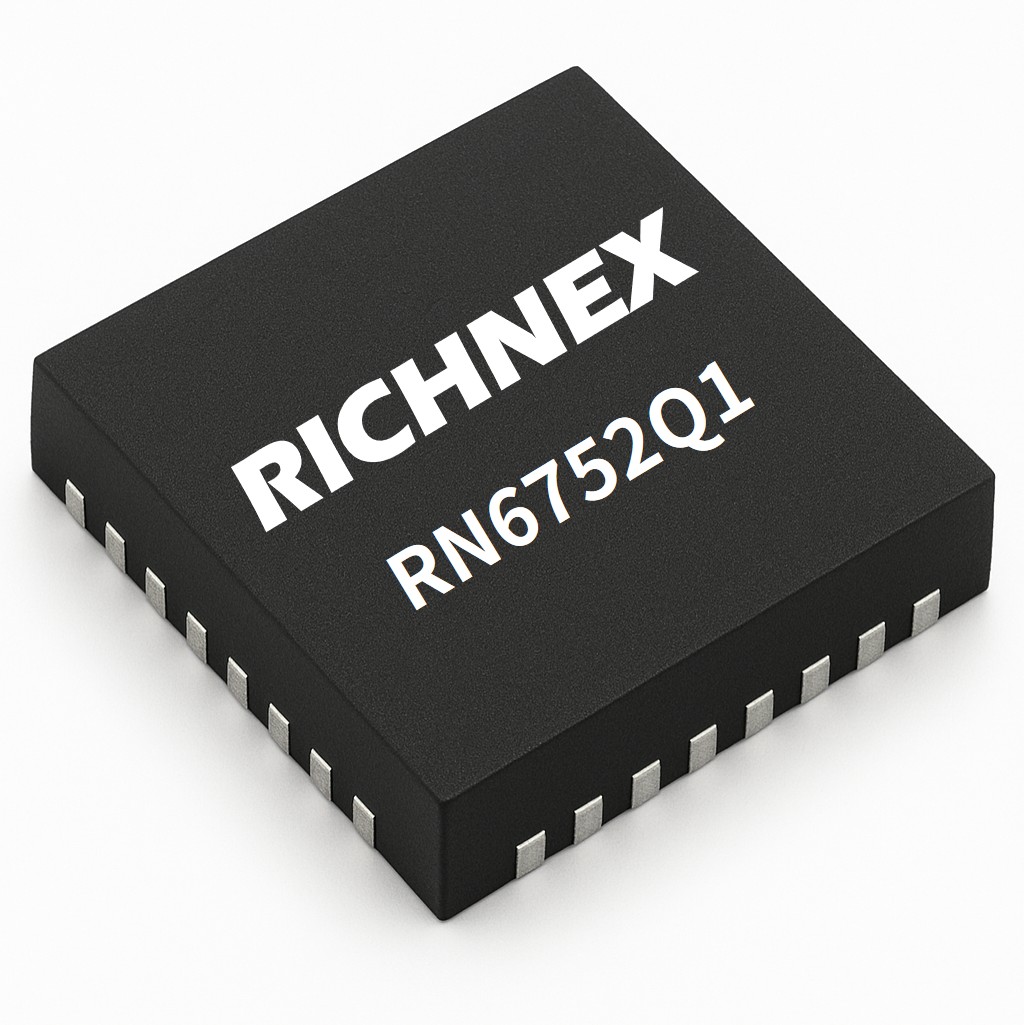

Package Information

Package	Dimensions	Leads	Package Code
QFN	5mm x 5mm	32	GQW

Key Parameters

Analog Input	Decoder Channel	Output Interface	Supply	Resolution	Current	Temp.
2	1	MIPI	1.2V 3.3V	1080p NTSC/PAL		-40°C to +85°C
