RN6366A

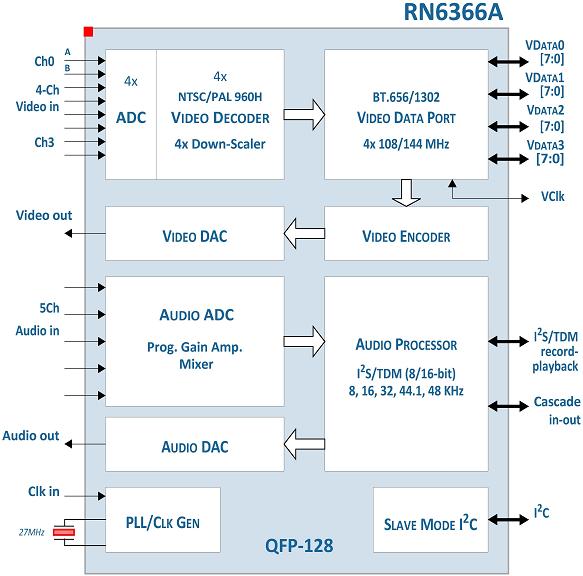

RN6366A is a 4-ch NTSC/PAL video decoder with one channel integrated encoder chip that supports 960H and D1 video decoding and encoding. With four BT.656 and BT.1302 interface ports, it can interface with most of the video processors through the standard video port or pixel-interleaved video port. Since 960H is becoming the popular analog video surveillance camera format, product migration from D1 to 960H capability is easily accomplishable using RN6366A to replace the legacy 128-pin decoders incapable of 960H decoding.

KEY FEATURES

PAL and NTSC decoder with automatic format detection
True 4-channel 960H video decoding with resolution greater than 650 TV lines (TVL)
960H video encoder with video DAC
5-ch audio input and 1-ch audio output
720H (D1) decoding format supported
Low-jitter PLL supporting and synchronizing all video, audio and data stream
Single 27MHz crystal or 27MHz/54MHz/108MHz clock input as system reference clock
Integrated video input anti-aliasing filters
54 MHz video ADC sampling frequency for best 960H decoding quality
5-line adaptive combing for 2D artifact-free Y/C separation
Integrated Power On Reset (POR) circuit
1.8V and 3.3V power supplies
Industrial temperature range from -40°C to 85°C available
Co-layout with legacy popular QFP-128 D1 decoder chips

PACKAGE

128-pin LQFP, 14mm x 14mm, 0.4mm Pitch
