RN6314A

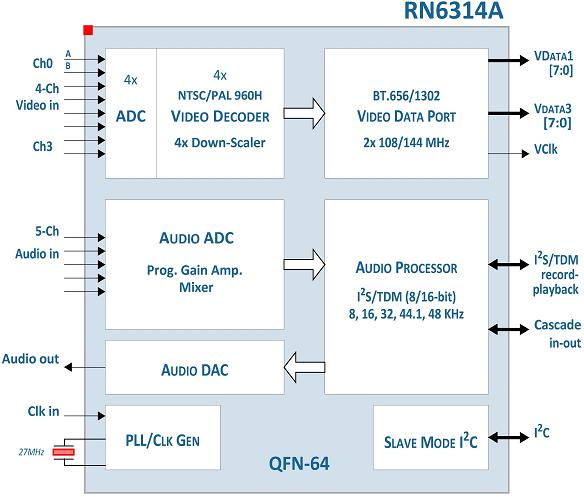

RN6314A is the newest member of the 4-ch video decoder products in a complete line of 960H decoder offerings by Richnex. RN6314A is in a compact QFN-64 package and supports all necessary video and audio functions and features often found by decoders in a 128-pin package. The low pin count design not only provides cost advantages but also offers excellent electrical as well as thermal properties comparing to the 128-pin QFP package. RN6314A is pin and register compatible with Richnex’ 8-ch 960H decoder chip (RN6318A). Customers can use the same PCB to support both 4-ch and 8-ch DVR products by design using RN6314A-RN6318A co-layout configuration.

KEY FEATURES

PAL and NTSC decoder with automatic format detection
True 4-channel 960H video decoding with resolution greater than 650 TV lines (TVL)
5-ch audio input and 1-ch audio output
720H (D1) decoding format supported
Low-jitter PLL supporting and synchronizing all video, audio and data stream
Single 27MHz crystal or 27MHz/54MHz/108MHz clock input as system reference clock
Integrated video input anti-aliasing filters
54 MHz video ADC sampling frequency for best 960H decoding quality
5-line adaptive combing for 2D artifact-free Y/C separation
Integrated Power On Reset (POR) circuit
1.8V and 3.3V power supplies
Industrial temperature range from -40°C to 85°C available
Pin compatible with RN6318A

PACKAGE

64-pin QFN, 9mm x 9mm, 0.5mm Pitch
