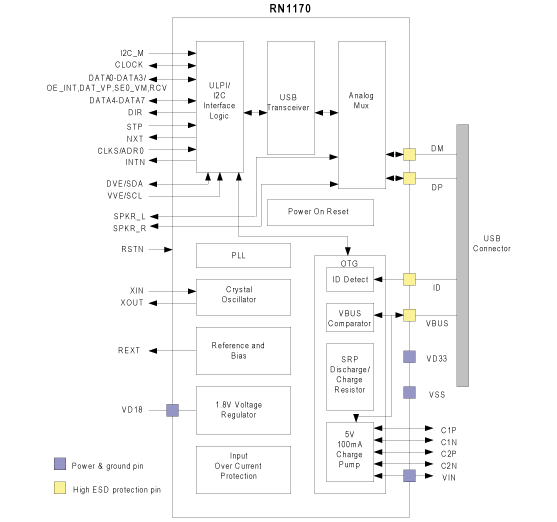

RN1170 integrates a 100mA 5V charge pump that supports compact battery powered devices with OTG function without external 5V power supply. In addition, RN1170 also supports features like Carkit, Battery Charging and ULPI input clock mode, etc. that make this USB2.0 OTG transceiver the most versatile USB transceiver in the market.

  • USB-IF High Speed Embedded Host Compliance Test certified. (TID: 120690012)
  • Universal Serial Bus Specification Rev. 2.0
  • On-The-Go Supplement to the USB2.0 Specification Rev. 1.3
  • UTMI+ Low Pin Interface (ULPI) Specification Rev. 1.1
  • USB Battery Charging Specification Rev. 1.1
  • On-The-Go Transceiver Specification (CEA-2011) Rev. 1.
  • Integrated 100mA 5V charge pump
  • Supports USB High (480Mbit/s)/Full (12Mbit/s)/Low (1.5Mbit/s) Data Speed
  • Supports ULPI 8-bit mode
  • Supports ULPI input clock mode
  • Allows routing of UART via USB receptacle (Carkit Mode)
  • Supports external power switch
  • Supports 24MHz crystal
  • Internal Power On Reset (POR) circuit
  • Integrated 3.3V to 1.8V LDO
  • Integrated ESD protection circuit (up to 8KV HBM) for DP, DM and ID pins
  • 40-Pin QFN, 5mm x 5mm, 0.4mm Pitch
