Single-Channel

RN6741N

1-Channel HD (1M) Decoder with Parallel (DVP) Output

Features: QFN-24, 4mm x 4mm Package; Supporting D1 (NTSC/PAL) and 720p (1M) Video Resolution; BT.656 Interface; Built-in 1.8V LDO; -40°C to +85°C Operating Temperature Range; Designed for Consumer Applications

Description

The RN6741N is a single-channel HD (1M) video decoder designed for the most cost-sensitive consumer applications. Its unique small footprint makes it ideal for portable devices and designs where PCB space is at a premium. Combining affordability with proven reliability, the RN6741 is a perfect choice for compact, entry-level video solutions.

Add Inquiry (0)

Applications

HD and SD (D1) Video Decoding
Consumer Video Capture System
Portable or Wearable Device

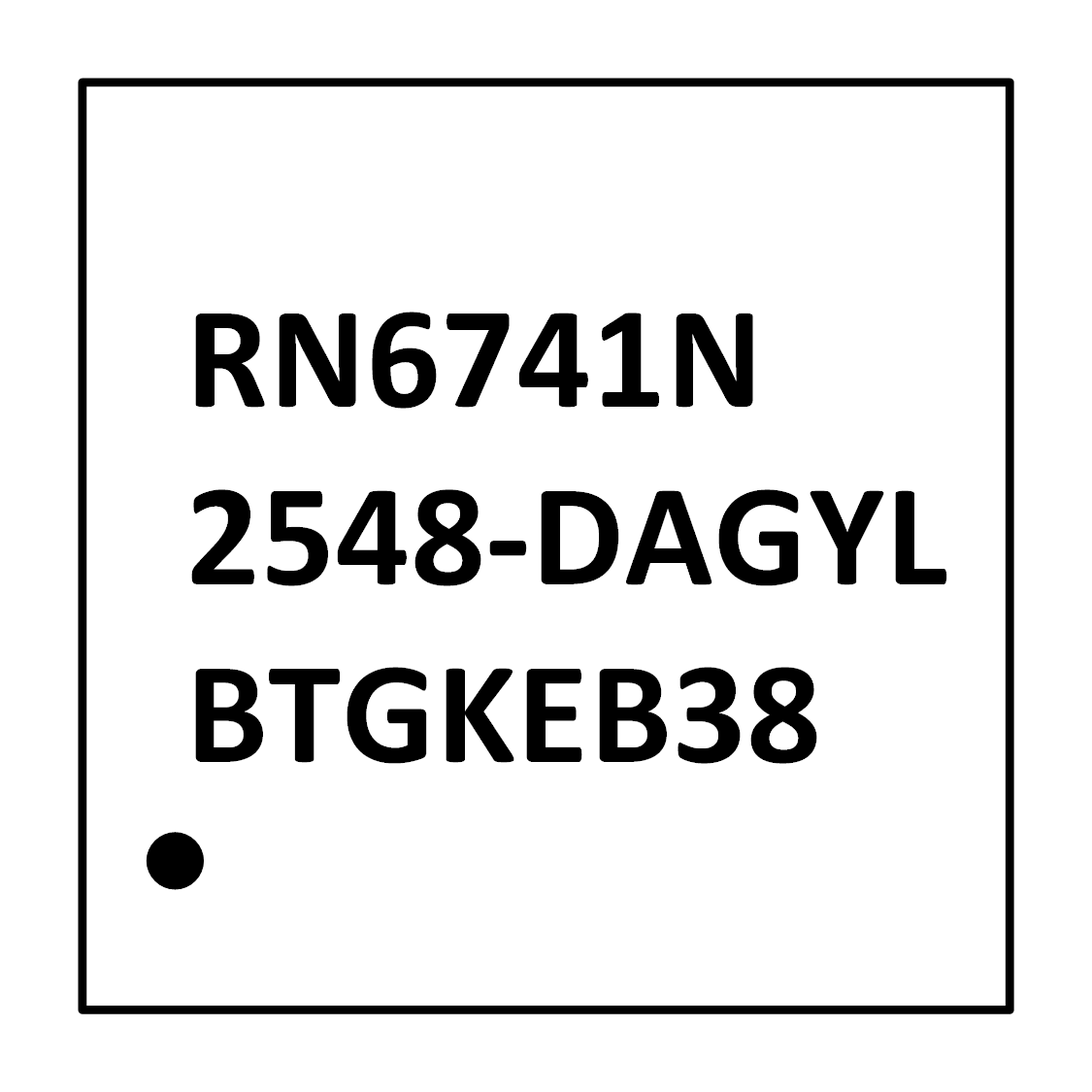

Package Information

Package	Dimensions	Leads	Package Code
QFN	4mm x 4mm	24	N

Key Parameters

Analog Input	Decoder Channel	Output Interface	Supply	Resolution	Current	Temp.
1	1	BT.656	1.2V 3.3V	720p/D1		-40°C to +85°C
