RN6852V1N

2-Channel HD (1440p) Decoder with MIPI Output

Features: Max. 1440p (4M) Video Resolution; Pseudo-Differential Analog Inputs; MIPI Output Interface; Dual 1.2/3.3V Power Supplies; Built-in 1.8V LDO; QFN-32 5mm x 5mm Package; -40°C to +85°C Operating Temperature Range; Designed for Automotive Applications

Description

The RN6852V1N is a 2-channel video decoder optimized for Camera Monitoring Systems (CMS) in two- and four-wheeled vehicles. Supporting 1080p resolution at 60 fps, it delivers low latency and fast startup—two critical requirements for safety and performance in CMS applications. This compact, high-efficiency decoder ensures reliable operation for next-generation automotive designs.

Add Inquiry (0)

Applications

Analog video decoding for resolution up to 1440p (4M)
Pseudo-differential inputs offer better common mode interference rejection
Ideal for applications requiring high frame rate
Replacement for TVP5150 decoder

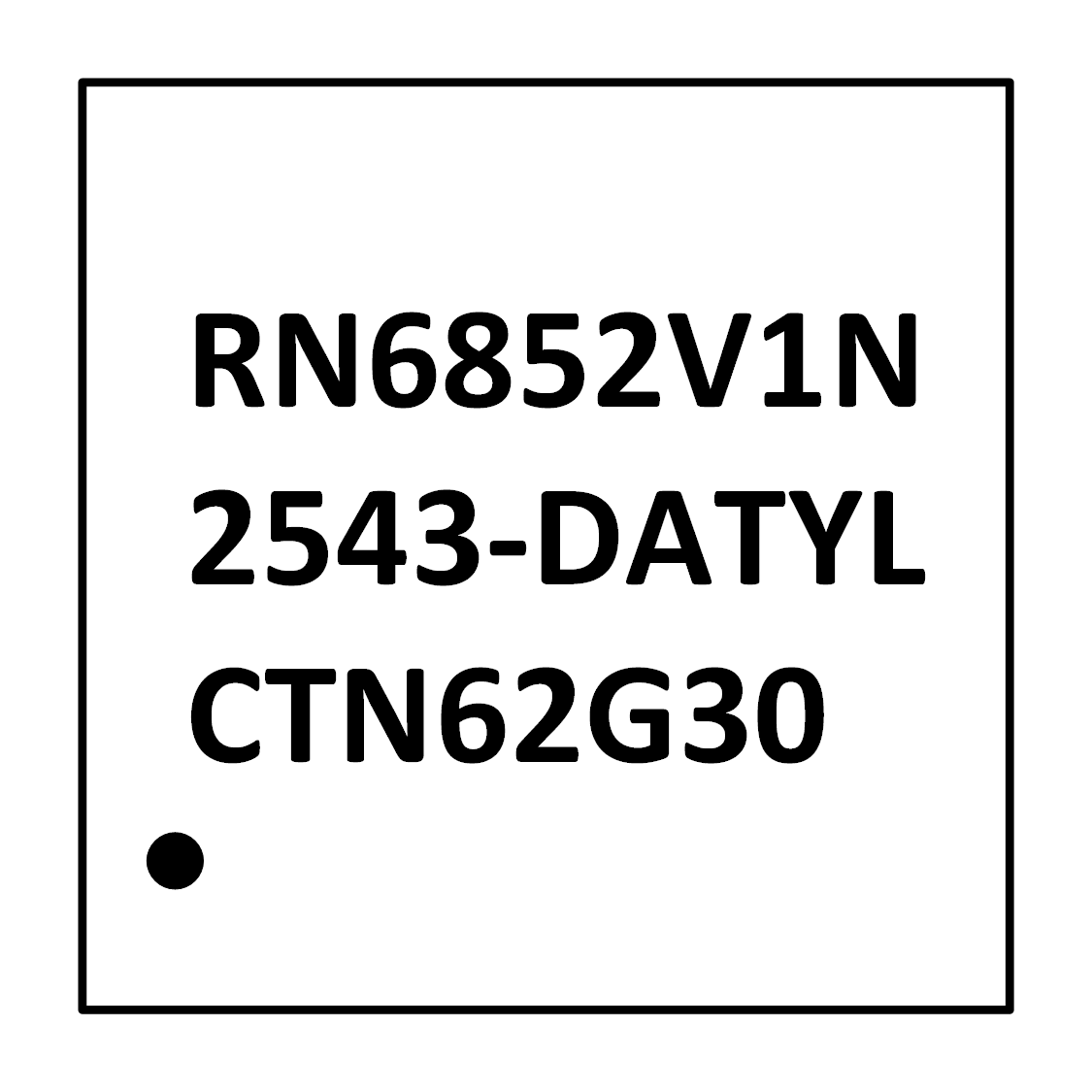

Package Information

Package	Dimensions	Leads	Package Code
QFN (Wettable-Flank)	5mm x 5mm	32	N

Key Parameters

Analog Input	Decoder Channel	Output Interface	Supply	Resolution	Current	Temp.
2 (Pseudo-Differential)	2	MIPI	3.3V 1.2V	1440p Max.		-40°C to +85°C
