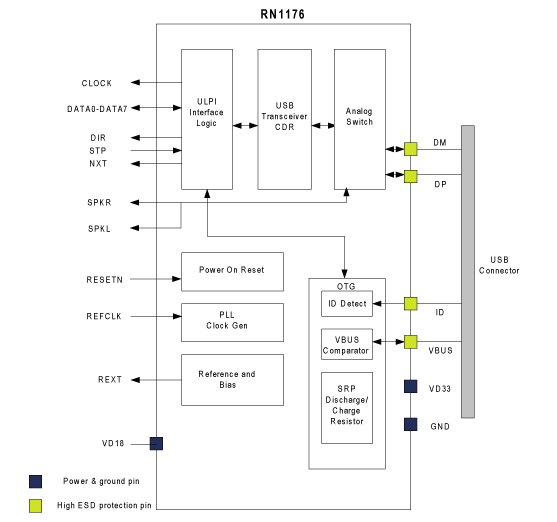

RN1176

Using the advanced chip scale package (CSP), RN1176 provides a tiny 3mm x 3mm device footprint. With the 19.2MHz reference clock and 1.8V I/O voltage, it is ideal for mobile or portable applications where low power and small board area are critical design goals.

STANDARD COMPLIANCE

USB-IF High Speed Device Compliance Test certified. (TID: 40000850)
Universal Serial Bus Specification Rev. 2.0
On-The-Go Supplement to the USB2.0 Specification Rev. 1.3
UTMI+ Low Pin Interface (ULPI) Specification Rev. 1.1
USB Battery Charging Specification Rev. 1.1

KEY FEATURES

Supports USB High (480Mbit/s)/Full (12Mbit/s)/Low (1.5Mbit/s) Data Speed
Supports Host/Device/OTG modes
Supports ULPI 8-bit mode
1.8V compatible ULPI interface
19.2MHz input reference clock
Allows routing of UART via USB receptacle (Carkit Mode)
Internal Power On Reset (POR) circuit
Integrated ESD protection circuit (up to 8KV HBM) for DP, DM and ID pins
Requires 3.3V and 1.8V external power

PACKAGE

25-pin CSP, 3mm x3 mm, 0.5mm pitch
