| RN1172：Ultra Small USB 2.0 ULPI Transceiver for Mobile Applications |
| |
| Features |
- Compatible with USB 2.0 Specification
- Complies with USB OTG Rev. 1.3
- Supports USB High/Full/Low Speed
- Supports Host/Device/OTG modes
- Complies with ULPI Rev. 1.1
- Supports ULPI 8 bit mode
- 1.8V compatible ULPI interface
- Allows routing of UART via USB receptacle (Carkit Mode)
- Accepts 19.2MHz input clock
- Requires 3.3V and 1.8V external power
- Integrated ESD Protection Circuit (8KV HBM) for DP, DM pins
- Complies with China AC Adaptor Specification
- Ultra Small Outline WL-CSP25 (2.11 mm x 2.12 mm) package
|
| |

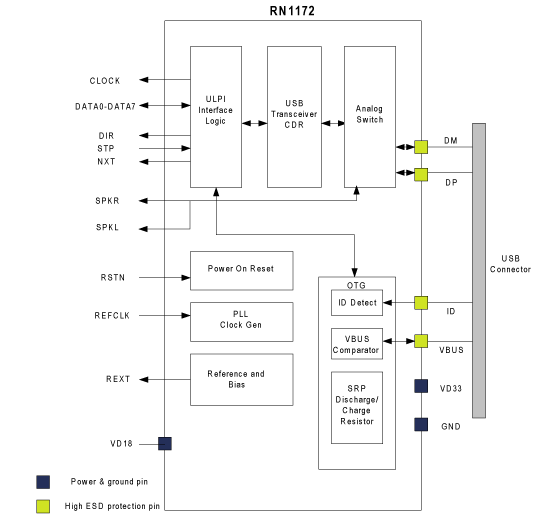

| Block Diagram |
 |
|
|
